VERTICAL Industry

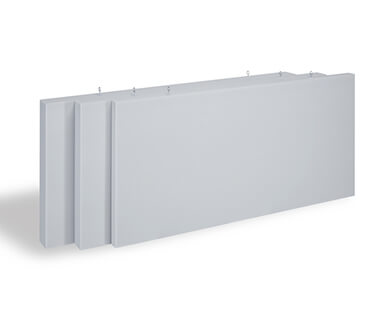

• Vertically hanging sound absorbers made from duromer acoustic foam
• Highly effective sound insulation and echo reduction
• Low weight and extraordinary heat and flame resistance according to fire protection class DIN 4102 B1 / C-s2, d0 according to DIN EN 13501

Product data

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

For those who expect more - aixFOAM Premium sound absorbers

Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.

• Maximum sound absorption
• Flame retardant according to DIN 4102 B1 / C-s2, d0 according to DIN EN 13501
• Form-stable and colour-fast – no yellowing!
• Very low weight
• Antistatic, fibre-free and elastic

Absorption values

The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 100 cm x 50 cm.

Sound absorption coefficients for VERTICAL Industry in white-grey

Frequency range	Height 5 cm	Height 8 cm	Height 9,6 cm
125 Hz	0,12	0,16	0,19
250 Hz	0,49	0,82	0,91
500 Hz	0,90	1,00	1,02
1000 Hz	1,00	0,99	1,02
2000 Hz	1,03	1,04	1,08
4000 Hz	1,00	1,06	1,07

Sound absorption coefficients for VERTICAL Industry in titanium-grey

Frequency range	Height 5 cm	Height 8 cm	Height 9,6 cm
125 Hz	0,18	0,26	0,30
250 Hz	0,47	0,71	0,77
500 Hz	0,75	0,93	0,97
1000 Hz	0,87	0,97	1,03
2000 Hz	0,95	1,01	1,07
4000 Hz	0,98	1,02	1,08

Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions. The sound absorption coefficients according to DIN EN ISO 354 (reverberation chamber) stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

• Use of high quality acoustic foams from Germany
• Precision manufacturing on the latest CNC cutting machines and systems
• Standard solutions or individual small and series manufacturing of noise insulation
• Advice, planning, production and brokering of assembly partners
