Application Areas:
WALL OF SILENCE
Covering with style
WALL OF SILENCE
Covering with style
Acoustic fabric, covering fabric
- Practical and complete set for high-quality acoustic wall cladding (maximum ~14 m² area)
- Consisting of: STICKY soundproofing mats, SOFTTOUCH (5 x 2,80 m), PROFILO (8x), EASYfixer (1x), screws for profile fastening
- Sound absorbers and acoustic fabric are certified according to DIN 4102 B1 / C-s2, d0 according to DIN EN 13501 as highly heat and flame resistant
- High-quality soundproofing solution for home cinemas, living rooms, restaurants, hotels, offices and representative rooms
Loading...
Adjust room
Impressions

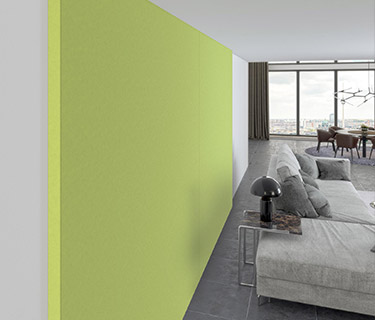

aixFOAM WALL OF SILENCE
- Complete set for a high-value wall covering with acoustic fabric
- Highly effective, self-adhesive soundproofing mats for optimum sound insulation

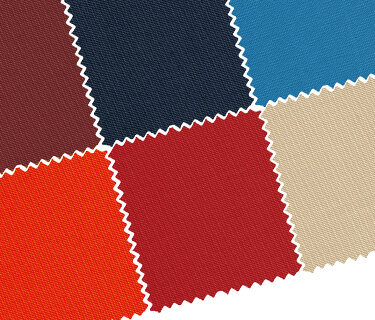

- Washable acoustic fabric in 30 fashionable colours incl. wall tension profiles and EASYfixer for effortless installation
Product data
Format, surface
Wall covering set for a maximum of 14 m² wall area with a circumferential frame made of wall tension profiles, acoustic fabric
Content
The set consists of:
- 14 m² sound insulation mats DIN 4102 B1 / C-s2, d0 according to DIN EN 13501 in 1 cm or 5 cm height
- 8 x clamping strips/ covering profiles
- 100 x screws for fastening the profiles (wood screws at 5 cm/ screws + dowels at 1 cm)
- 14 m² SOFTTOUCH in desired colour
- 1 x aixFOAM EASYfixer
Important installation note
For the wall covering set in 5 cm thickness, you need a base made of cantilevered wood (4 cm – 5 cm height) under the clamping profiles, so that it can completely frame the soundproofing mats inside and the acoustic material can be stretched over it. You will find wood in a well-stocked building shop near you.
Further helpful tips and hints for the construction of an acoustic wall tensioning can also be found in our aixFOAM knowledge article (German).
Material thickness
soundproofing mats
soundproofing mats
1 cm, 5 cm
Material
Duromer acoustic foam (sound absorber), acoustic fabric, plastic (wall tension profiles), wood and metal (EASYfixer)
Colours
beige, ivory, light yellow, peach, saffron, rose, coral, ruby red, raspberry red, aubergine, lime green, anis, linden green, emerald green, antique blue, sky blue, cobalt blue, royal blue, indigo, dark blue, white, pearl white, cream-white, light grey, silk grey, grey beige, mocha brown, steel grey, anthracite, black
Soundproofing mats: White-grey
Wall clamping profiles: White, black
Fire classes
Acoustic fabric: DIN 4102 B1 / C-s2, d0 according to DIN EN 13501, M1 - NF P 92 503-504-505, UNO italien UNI 8456 / UNI 9174, Testing of vertically hanging textiles and foils according to IMO 2010 FTP Code Part 7
Soundproofing mats: DIN 4102 B1 / C-s2, d0 according to DIN EN 13501
The fire classes of the aixFOAM absorbers do not only refer to the material, but always include the products including the mounting options offered by us, such as our STICKY self-adhesive kit.
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.
Care instructions acoustic fabric
Harmful substance information
Maximum UV resistance, does not yellow
Recommended accessories
Would you like to cover a much smaller or larger area than 14 m²? No problem! In our aixFOAM shop you will find all the materials you need to individually assemble your acoustic wall covering.
- SOFTTOUCH
- PROFILO with closing edge
- aixFOAM EASYfixer
- aixFOAM FLAT acoustic panels or aixFOAM FLAT Plus acoustic panels with STICKY (Makes your aixFOAM self-adhesive)
More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.
Easily install textile wall covering yourself? No problem with the right materials such as the aixFOAM SOFTTOUCH, the EASYfixer and the tensioning profiles! Read more about this in our aixFOAM knowledge article (German).
Profit from sound insulation directly from the manufacturer!
At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.
Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.
- Use of high quality acoustic foams from Germany
- Precision manufacturing on the latest CNC cutting machines and systems
- Standard solutions or individual small and series manufacturing of noise insulation
- Advice, planning, production and brokering of assembly partners
Brand quality
from the manufacturer
"Made in Germany"
"Made in Germany"
Production
for you, individually
in a few days
in a few days
Experience
for 65 years
soundproofing experts
soundproofing experts
Award
ISO 9001:2015 certified
‘With our WALL OF SILENCE, you can easily create an extravagant soundproofing solution. The effective soundproofing mats immediately improve the acoustics and the high-quality SOFTTOUCH ensures an exceptionally fine look. Thanks to the wall covering profiles and the EASYfixer, installation takes no time at all.’
Agnes Hermanns, customer advisor
