Application Areas:
BASSIC
Low frequencies under control
BASSIC
Low frequencies under control

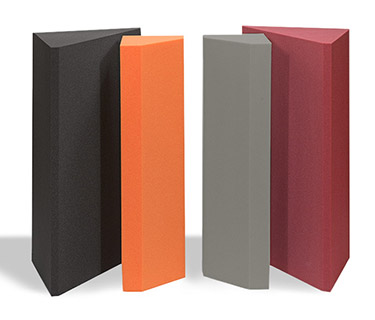

Bass absorber sets in two different sizes
- Body shape: Prism, bevelled wall edges
- In anthracite, raspberry red, orange, steel grey
- Depending on the size designed for different cutoff frequencies
- Highly-effective as bass dampening in the HiFi room, home cinema, sound studio, music room
Loading...
Adjust room
Impressions
BASSIC – Low frequencies under control
- Prism-shaped bass trap for effective soundproofing at low frequencies
- Excellent price-performance ratio
- Improve the bass reproduction for a clear, dry sound without flatter echoes, drumming and humming
Product data
Format, surface
Prism (Height: 100 cm), smooth surface
Kartenlänge
25 cm x 25 cm, 46 cm x 46 cm
Material
Open-cell PUR acoustic foam
Colours
anthracite, steel grey, raspberry red, orange
Fire classes
PUR-E (without flame protection), PUR-E+ (FMVSS302), PUR-ES (without flame protection), PUR-ES++ (UL94HF1), fire class depends on colour selected
The fire classes of the aixFOAM absorbers do not only refer to the material, but always include the products including the mounting options offered by us, such as our STICKY self-adhesive kit.
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.
Fastening options
Free-standing, intrinsically stable
Temperatureresistance
- 40 °C to + 100 °C
UV-resistance
UV protection against yellowing thanks to UV blocker additive
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.
Absorption values
Unlike for sound absorbers in panel form, which are placed over a large area on wall or ceiling surfaces, it does not make sense to specify pure sound absorption degrees for free-standing absorbers, such as our low-frequency absorbers. This would not be meaningful or physically useful.
Therefore, our bass absorbers from RWTH University were tested for their sound absorption effect in extensive measurements in accordance with DIN 52212, taking into account the equivalent absorption surface. The complete measurement log with detailed explanations and all numerical results can be found in the corresponding data sheet if necessary. We will be happy to send this to you on request.
 Frequency range |
 Edge length 25 cm x 25 cm |
 Edge length 46 cm x 46 cm |
|---|---|---|
| Lower limit frequency |
50 Hz | 28 Hz | Maximum absorption effect at |
200 Hz | 100 Hz |
Misunderstandings are common when setting up bass absorbers. In this article we have therefore gathered detailed information on the correct positioning and operation of our bass absorbers.
Profit from sound insulation directly from the manufacturer!
At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.
Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.
- Use of high quality acoustic foams from Germany
- Precision manufacturing on the latest CNC cutting machines and systems
- Standard solutions or individual small and series manufacturing of noise insulation
- Advice, planning, production and brokering of assembly partners
Brand quality
from the manufacturer
"Made in Germany"
"Made in Germany"
Production
for you, individually
in a few days
in a few days
Experience
for 65 years
soundproofing experts
soundproofing experts
Award
ISO 9001:2015 certified

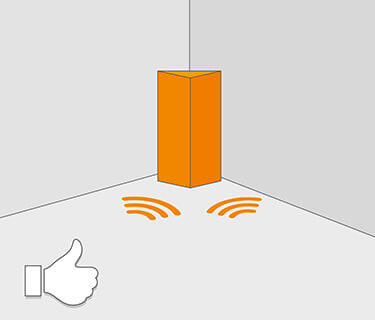

‘With our bass trap BASSIC you receive an all-rounder against irritating bass frequencies – and at a very good price-performance ratio. The larger the absorber selected, the lower the frequencies that can be absorbed. My tip: Stack several bass absorbers on top of each other to strengthen the effect even more. In this way you achieve a precise bass reproduction, without flatter echoes, drumming or humming. You must also ensure that the absorbers are placed in the corners with the points facing into the room.’
