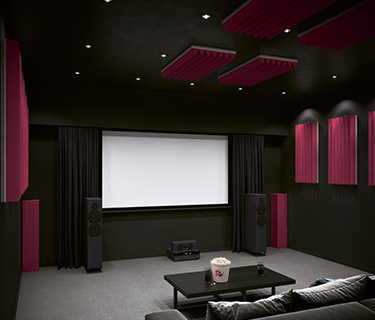

HEIMKINOSet

• Matched set of wall/ceiling absorbers and bass absorbers for optimal acoustics in all frequency ranges
• Comes in 4 colour variations
• Easy and flexible installation thanks to the upFRAME (mounting suspension cassettes)

Product data

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the absorption coefficient were performed on PUR-ES acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.

Sound absorption values for ROWS sound absorbers with triangular profile

Frequency range	Height 10 cm
125 Hz	0,17
250 Hz	0,67
500 Hz	0,91
1000 Hz	1,03
2000 Hz	1,05
4000 Hz	1,08

Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Absorption values and installation für Bassabsorber BASSIC

Unlike for sound absorbers in panel form, which are placed over a large area on wall or ceiling surfaces, it does not make sense to specify pure sound absorption degrees for free-standing absorbers, such as our low-frequency absorbers. This would not be meaningful or physically useful.

Therefore, our bass absorbers were tested by the RWTH University in extensive measurements according to DIN 52212 on their sound absorption effect, taking into account the equivalent absorption area. You can find the measured values on the article page of our bass absorbers BASSIC. The complete test report with detailed explanations and all determined values can be found in the corresponding data sheet if required. We will gladly send you this on request.

Misunderstandings are common when setting up bass absorbers. In this article we have therefore gathered detailed information on the correct positioning and operation of our bass absorbers.

Learn more (German)

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

• Use of high quality acoustic foams from Germany
• Precision manufacturing on the latest CNC cutting machines and systems
• Standard solutions or individual small and series manufacturing of noise insulation
• Advice, planning, production and brokering of assembly partners
